Technical information
Product details & specifications
Overview

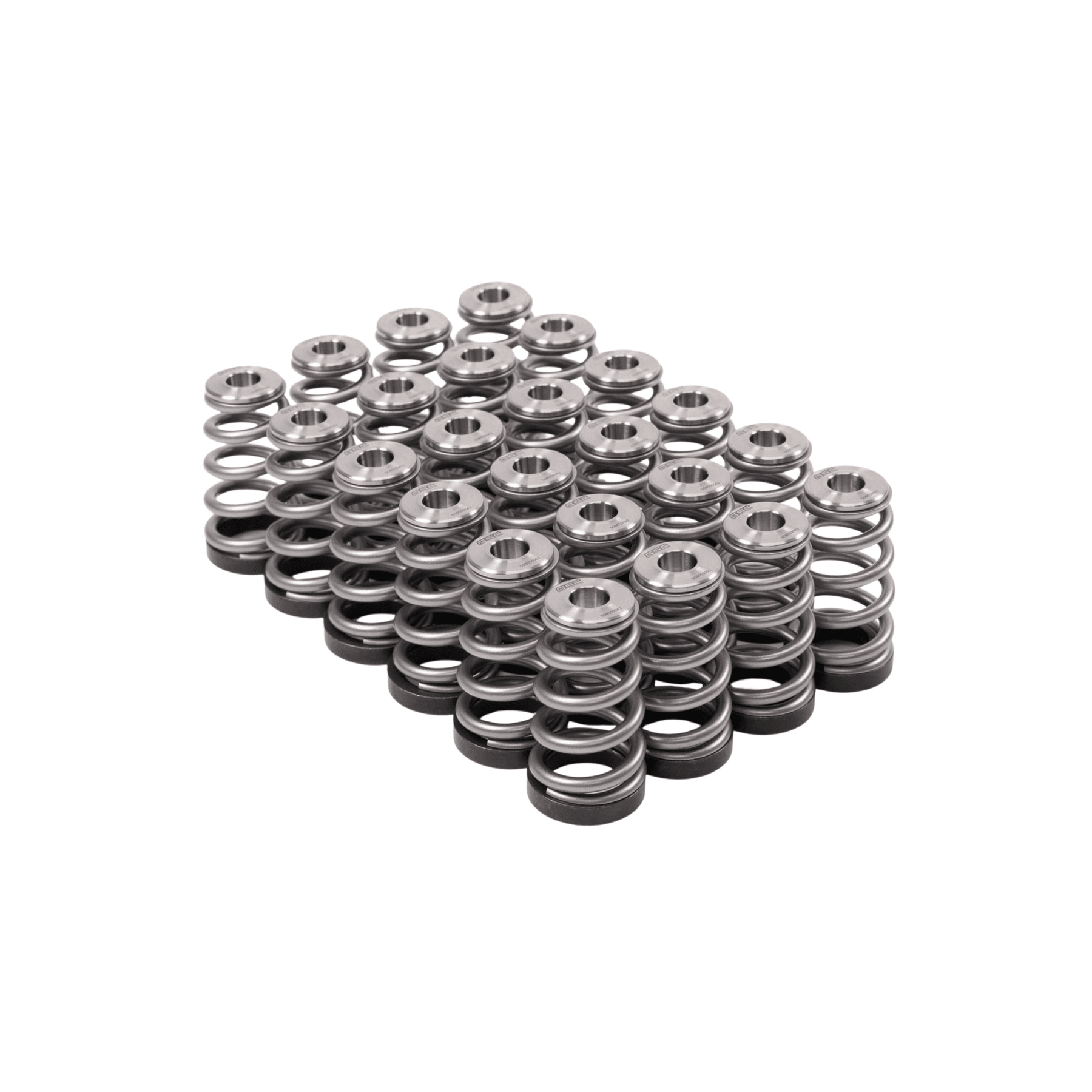

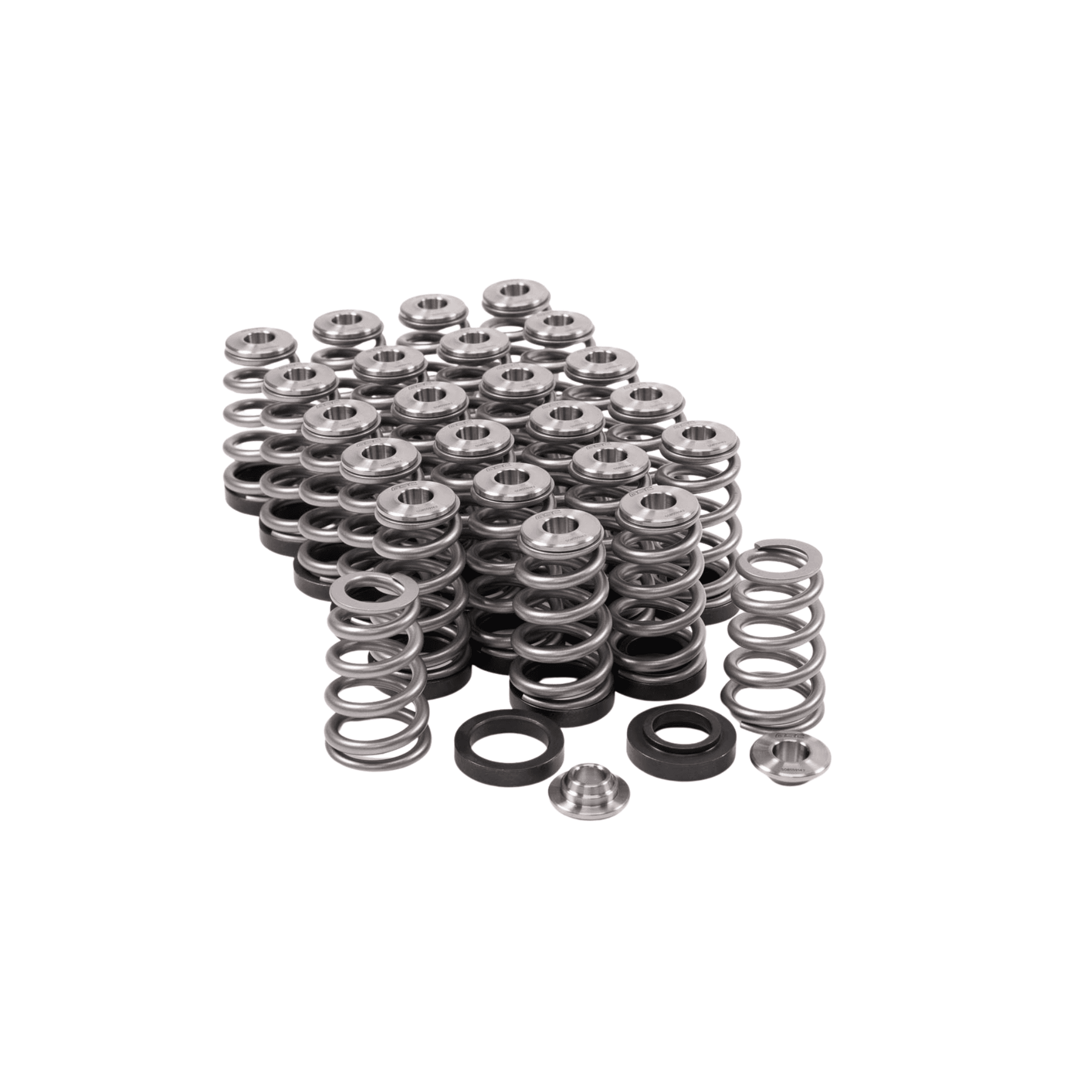

Conical spring package for an RB26DETT shimless valvetrain. GSC lists 24 springs, 24 titanium retainers and separate sets of 12 intake and 12 exhaust chromoly seats.
Manufacturer specifications
| Valve Spring | Value |
|---|---|
| Setup | Conical |
| Coil Bind (in) | 0.786 |
| Install Height (in) | 1.285" |
| Seat Pressure (lbs) | 95 |
| Open Pressure | 225 lbs @ 0.862 in |
| Maximum Valve Lift (in) | 0.443 |
Part numbers and options
- GSC5085
Technical resources
Confirm the exact application, component measurements and current installation instructions with your engine builder before assembly.
