Technical information
Product details & specifications
Overview

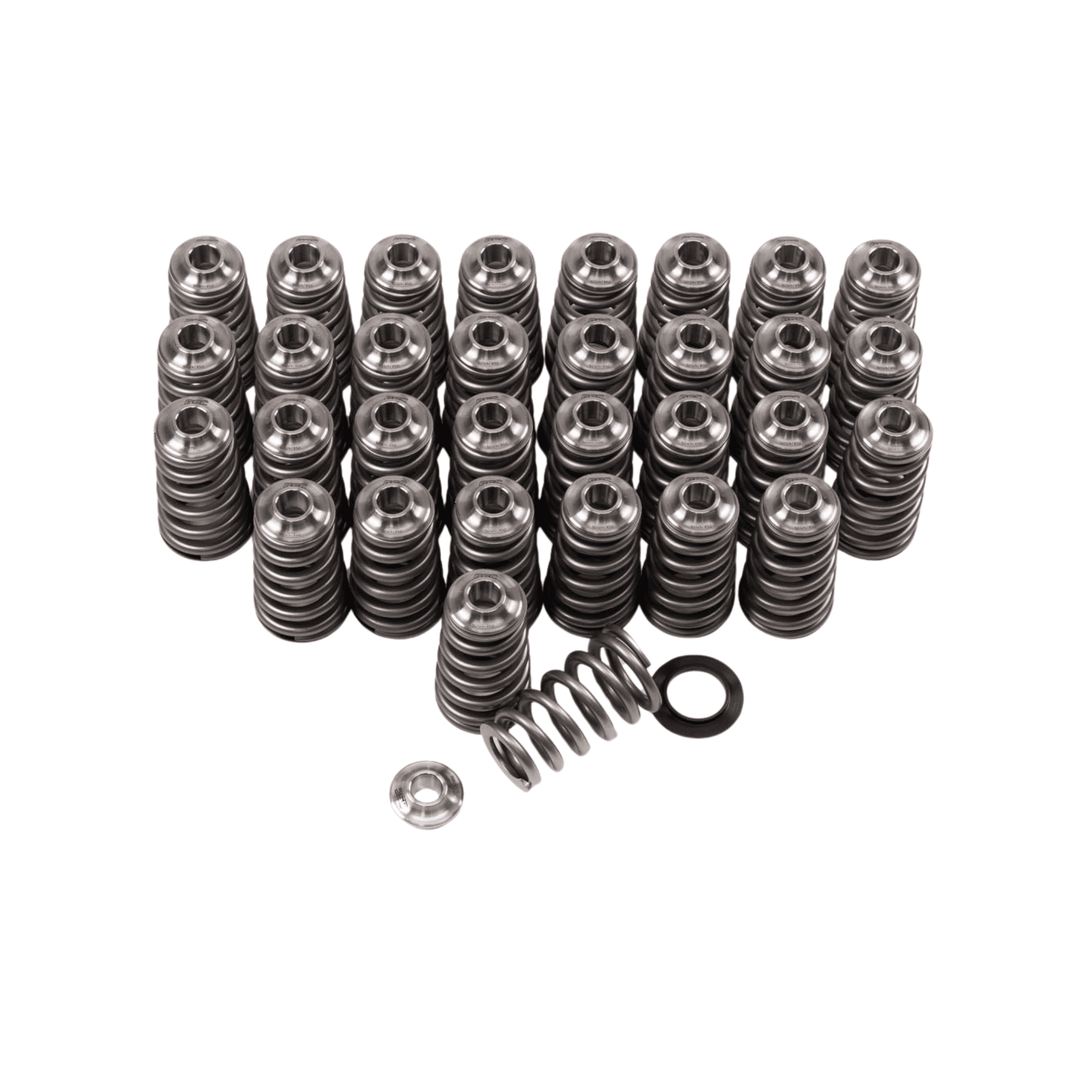

Ovate conical spring kit for Ford GT350 Voodoo and GT500 Predator 5.2L applications. The manufacturer lists titanium retainers and spring seats; confirm suitability for the complete engine combination.
Manufacturer specifications
| Valve Spring | Value |
|---|---|
| Setup | Ovate Conical |
| Coil Bind (in) | 0.960 |
| Install Height (in) | 1.613 |
| Seat Pressure (lbs) | 103 |
| Maximum Valve Lift (in) | 0.600 |
Part numbers and options
- GSC5013
Technical resources
Confirm the exact application, component measurements and current installation instructions with your engine builder before assembly.
