Technical information
Product details & specifications
Overview

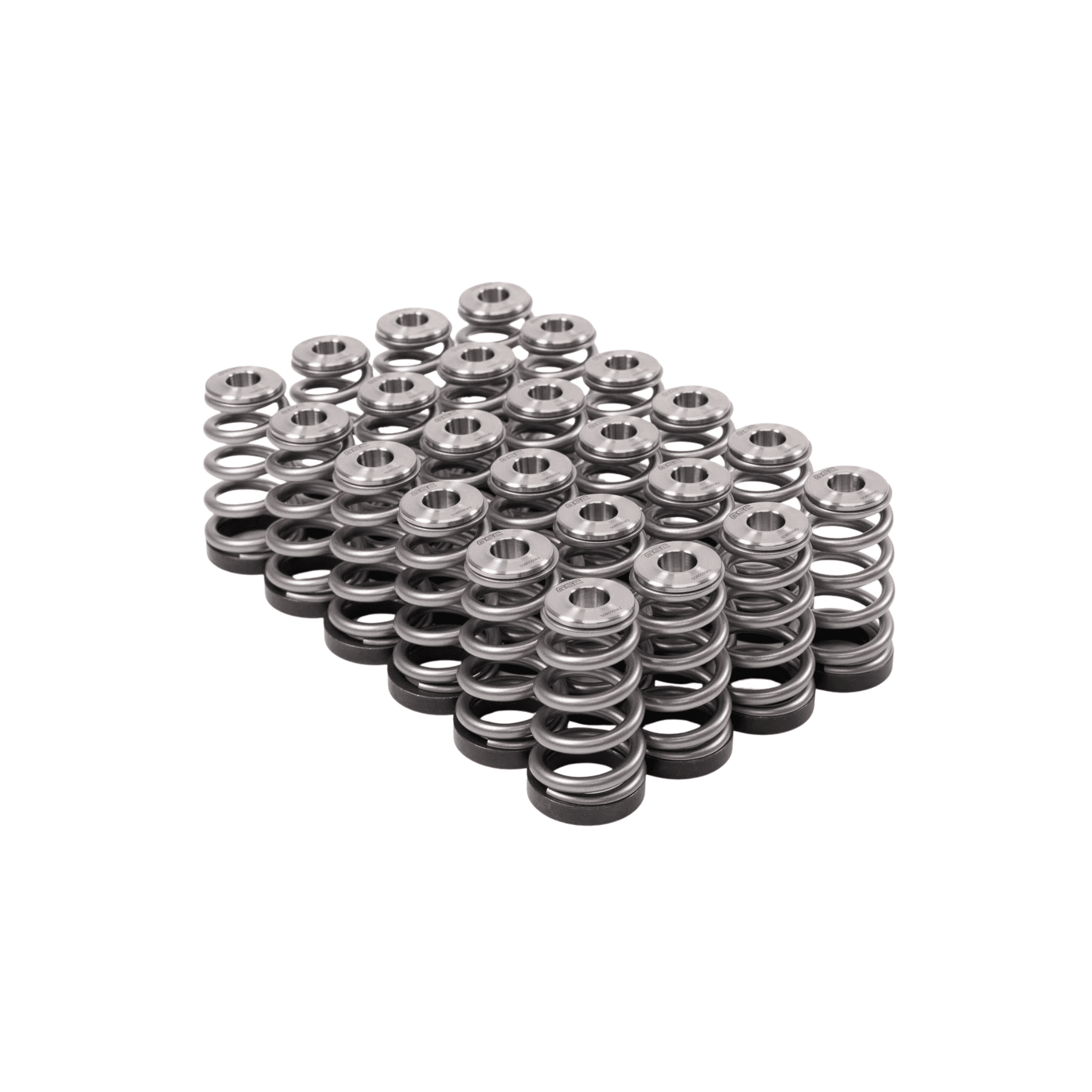

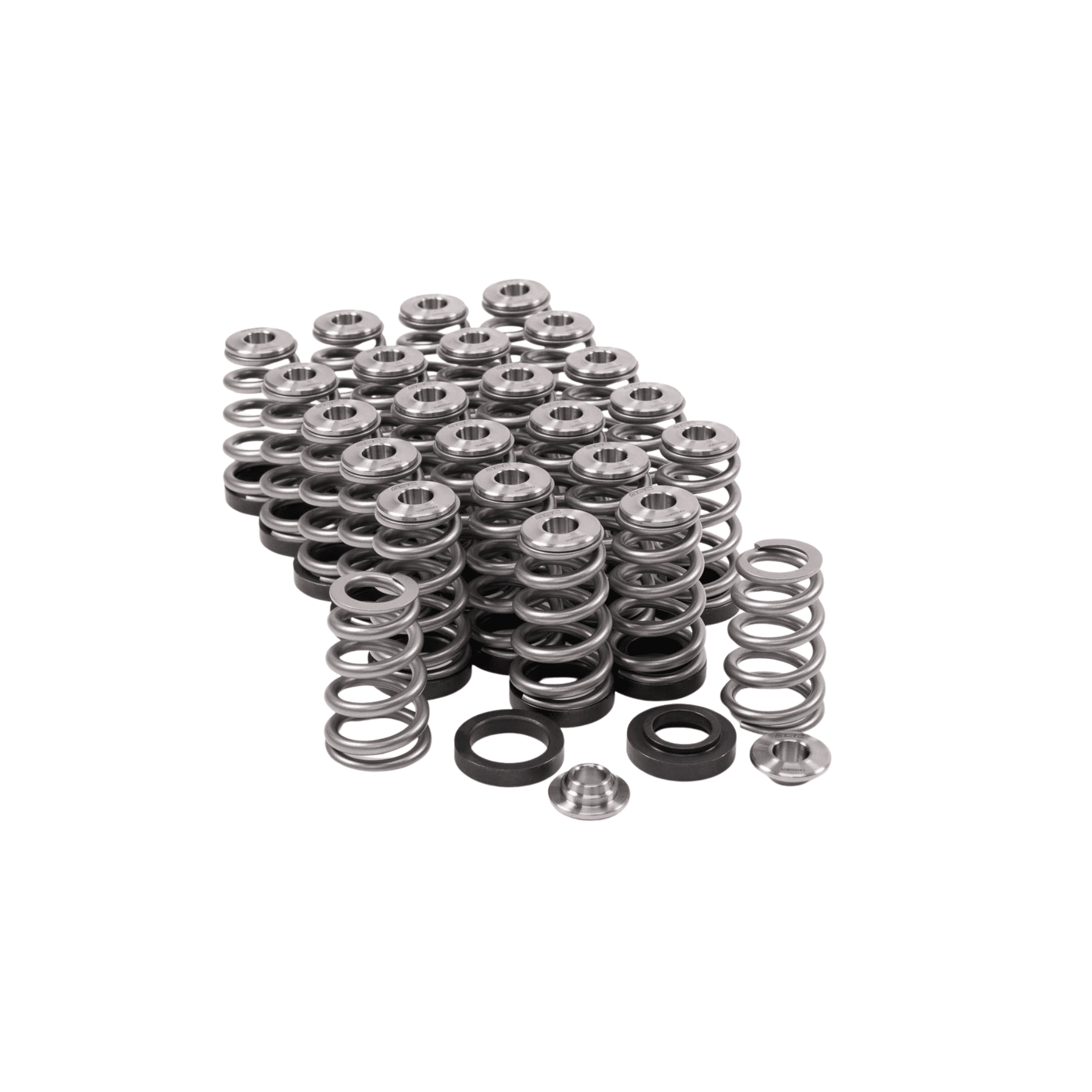

High-pressure conical spring package for the RB26DETT with non-OEM shimless buckets. This is a different application from the GSC5775 shim-under cylindrical kit.
Manufacturer specifications
| Valve Spring | Value |
|---|---|
| Setup | Conical |
| Coil Bind (in) | 0.787" |
| Install Height (in) | 1.305" |
| Seat Pressure (lbs) | 108 |
| Maximum Valve Lift (in) | 0.453" |
| Open Pressure | 258 lbs @ 0.852 in (11.5 mm lift) |
Part numbers and options
- GSC5026
Technical resources
Confirm the exact application, component measurements and current installation instructions with your engine builder before assembly.
