Technical information
Product details & specifications
Overview

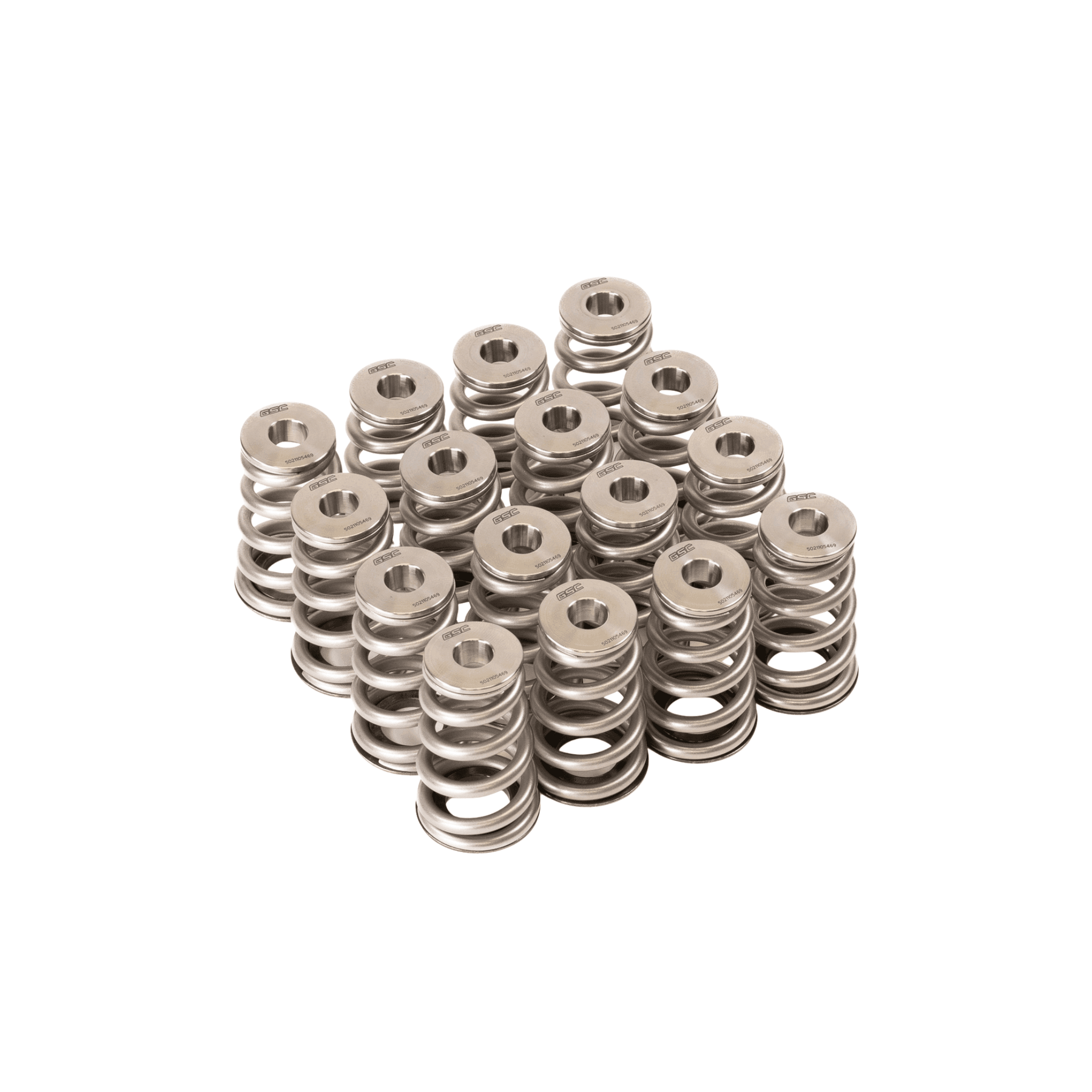

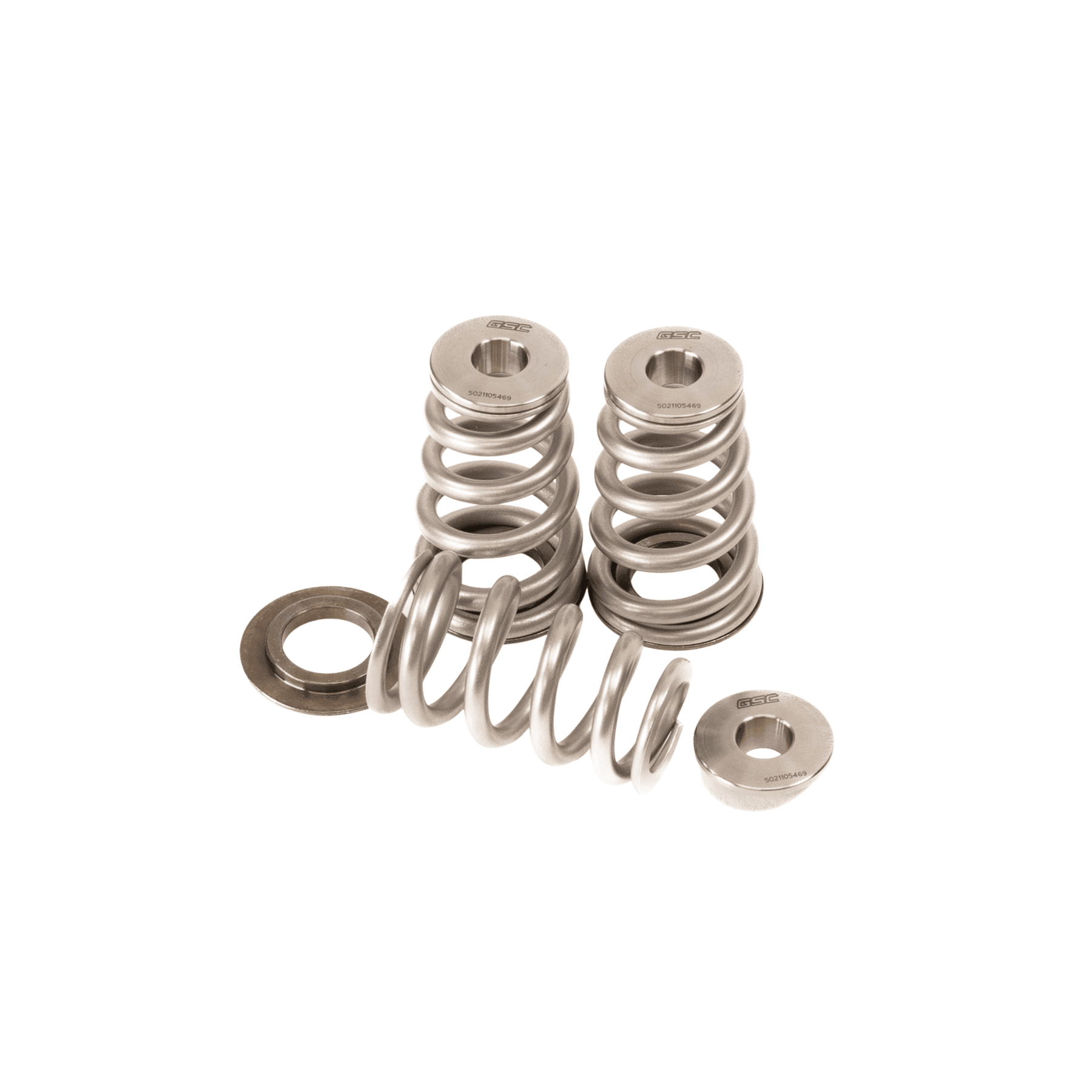

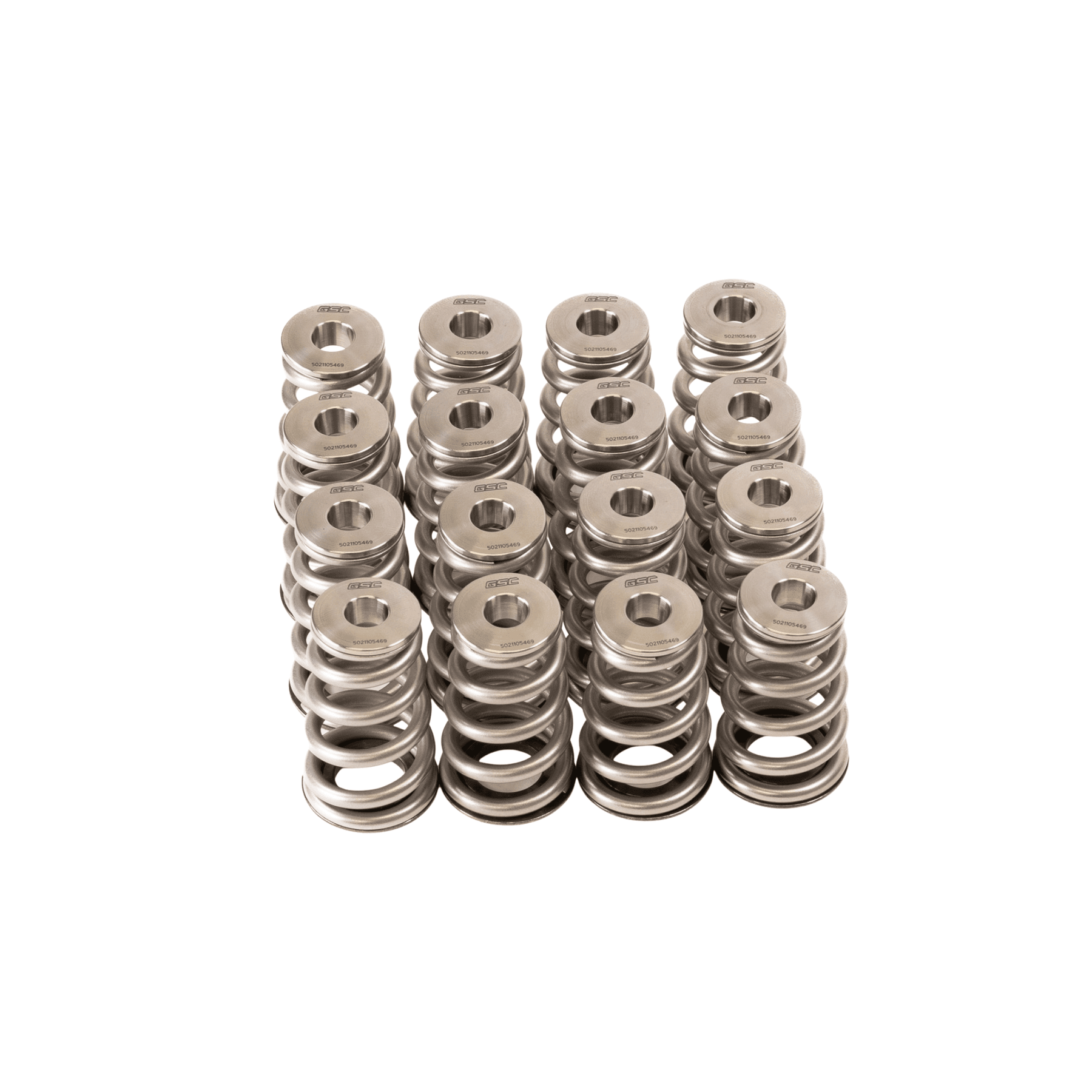

High-pressure conical spring package for the 2022+ Subaru WRX FA24F. The manufacturer lists 16 springs, 16 titanium retainers and 16 spring seats.
Manufacturer specifications
| Valve Spring | Value |
|---|---|
| Setup | Conical |
| Coil Bind (in) | .787 |
| Install Height (in) | 1.315 |
| Seat Pressure (lbs) | 105 |
| Maximum Valve Lift (in) | 0.472 |
| Open Pressure | 261 lbs @ 0.843 in (12.00 mm lift) |
Part numbers and options
- GSC5024
Technical resources
Confirm the exact application, component measurements and current installation instructions with your engine builder before assembly.
