Technical information
Product details & specifications
Overview

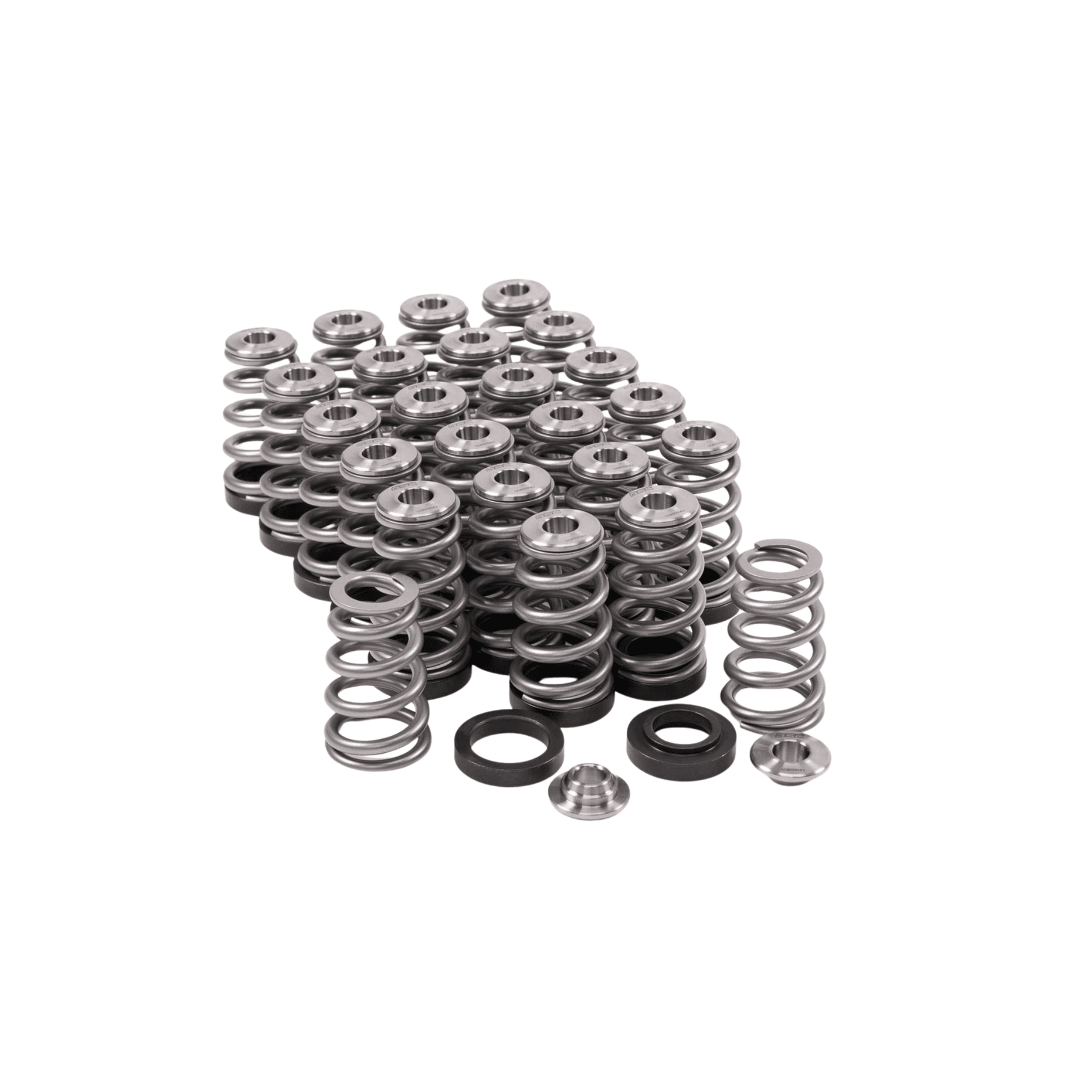

Extreme conical spring package for an RB26DETT using non-OEM shimless buckets. Confirm the bucket arrangement and spring installation specification with the engine builder.
Manufacturer specifications
| Valve Spring | Value |
|---|---|
| Setup | Conical |
| Coil Bind (in) | 0.793" |
| Install Height (in) | 1.305" |
| Seat Pressure (lbs) | 140 |
| Maximum Valve Lift (in) | 0.453" |
| Open Pressure | 290 lbs @ 0.852 in (11.50 mm lift) |
Part numbers and options
- GSC5027
Technical resources
Confirm the exact application, component measurements and current installation instructions with your engine builder before assembly.
