Overview

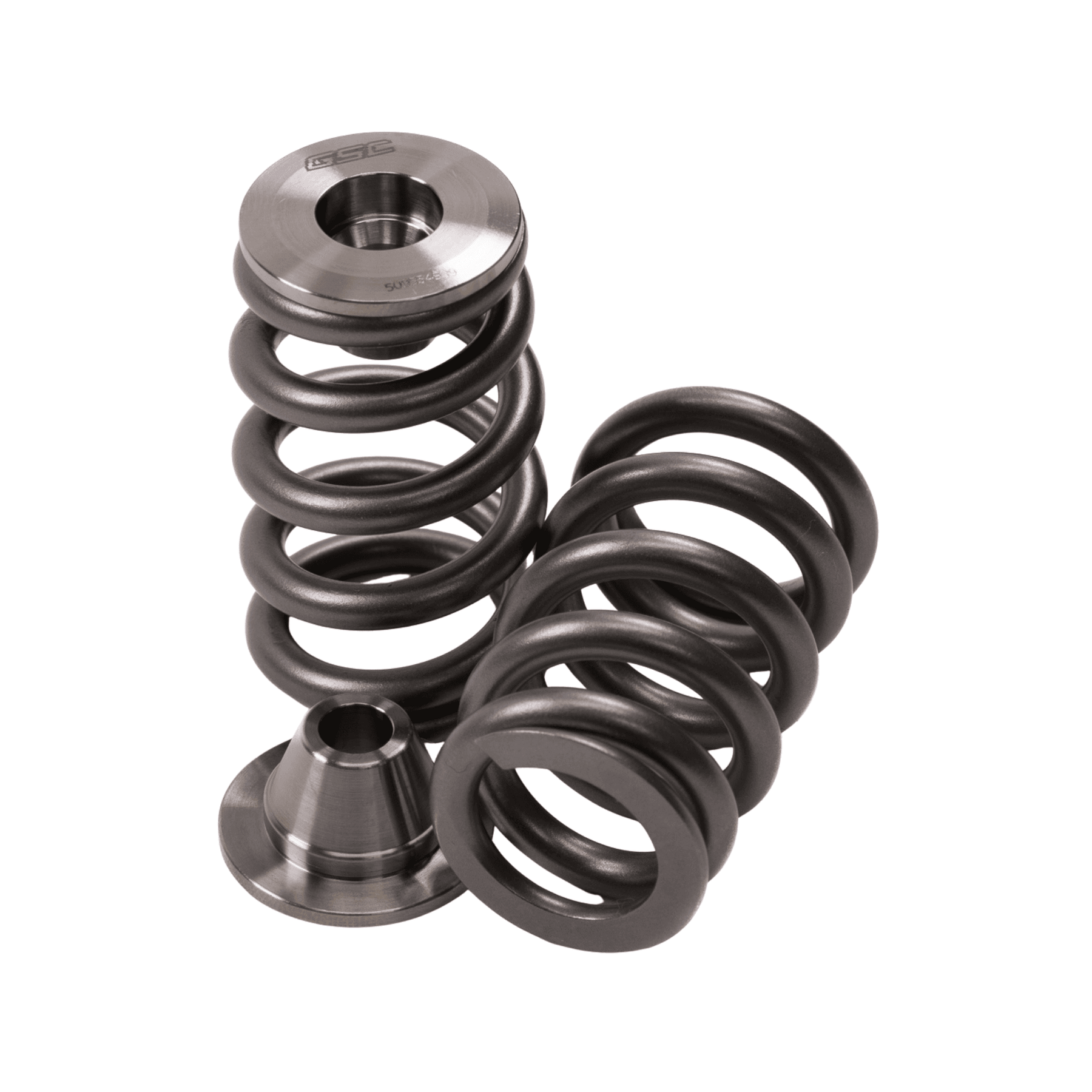

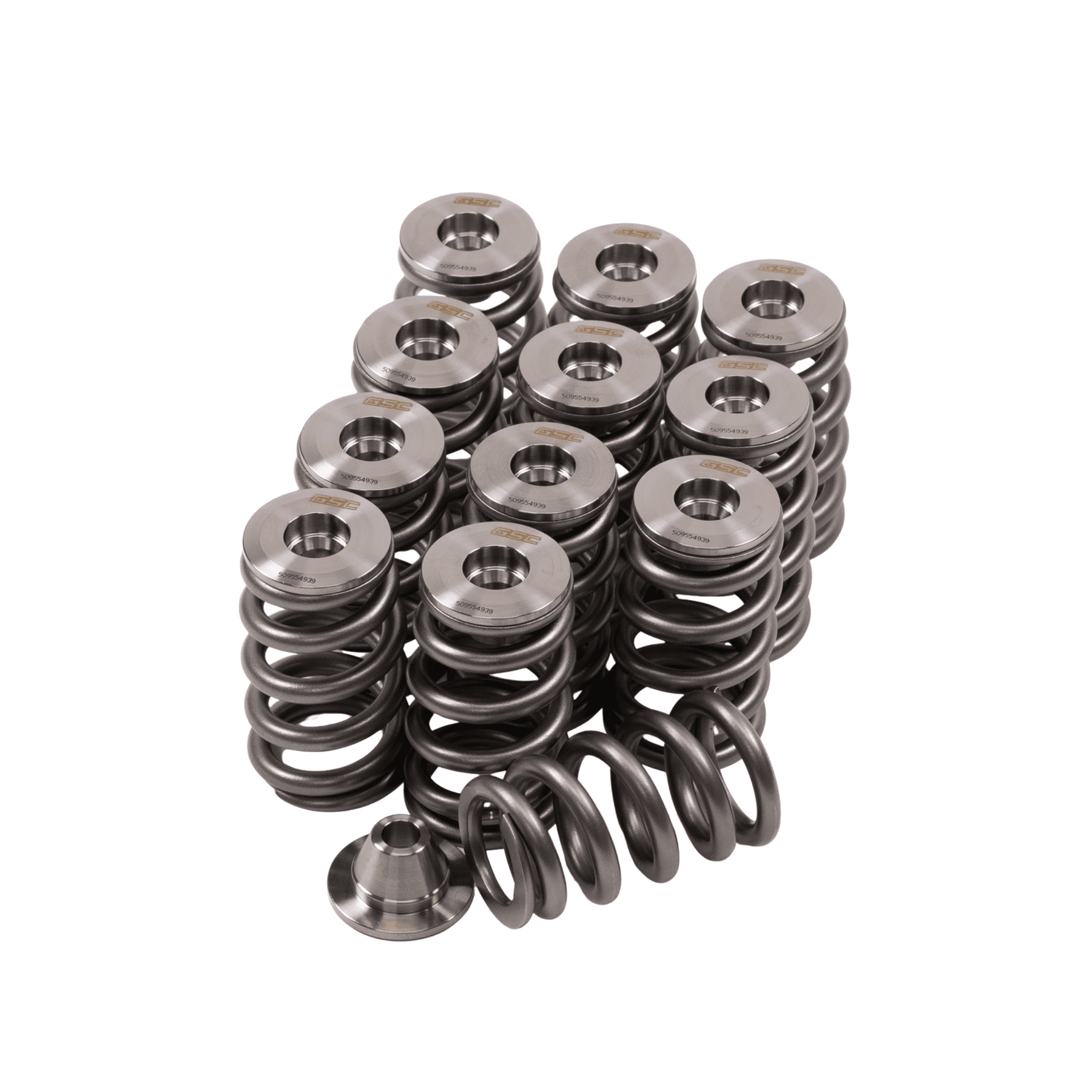

High-pressure beehive spring kit for the CAN-AM Maverick X3 Turbo Rotax 900 ACE application. The manufacturer describes hydraulic-tappet use, with a retainer also provisioned for a solid-tappet arrangement using a 9.48 mm shim.
Manufacturer specifications
| Valve Spring | Value |
|---|---|
| Setup | Beehive |
| Coil Bind (in) | 0.830 |
| Install Height (in) | 1.306 |
| Seat Pressure (lbs) | 90 |
| Open Pressure | 227 lbs @ 0.886 in |
Part numbers and options
- GSC5095
Technical resources
Confirm the exact application, component measurements and current installation instructions with your engine builder before assembly.
