GSC Power-Division Beehive Spring set with Titanium Retainer for the K20 K24 VTEC
GSC5047
Regular price £474.05 Sale price £450.35 Save £23.70/
Shipping calculated at checkout.

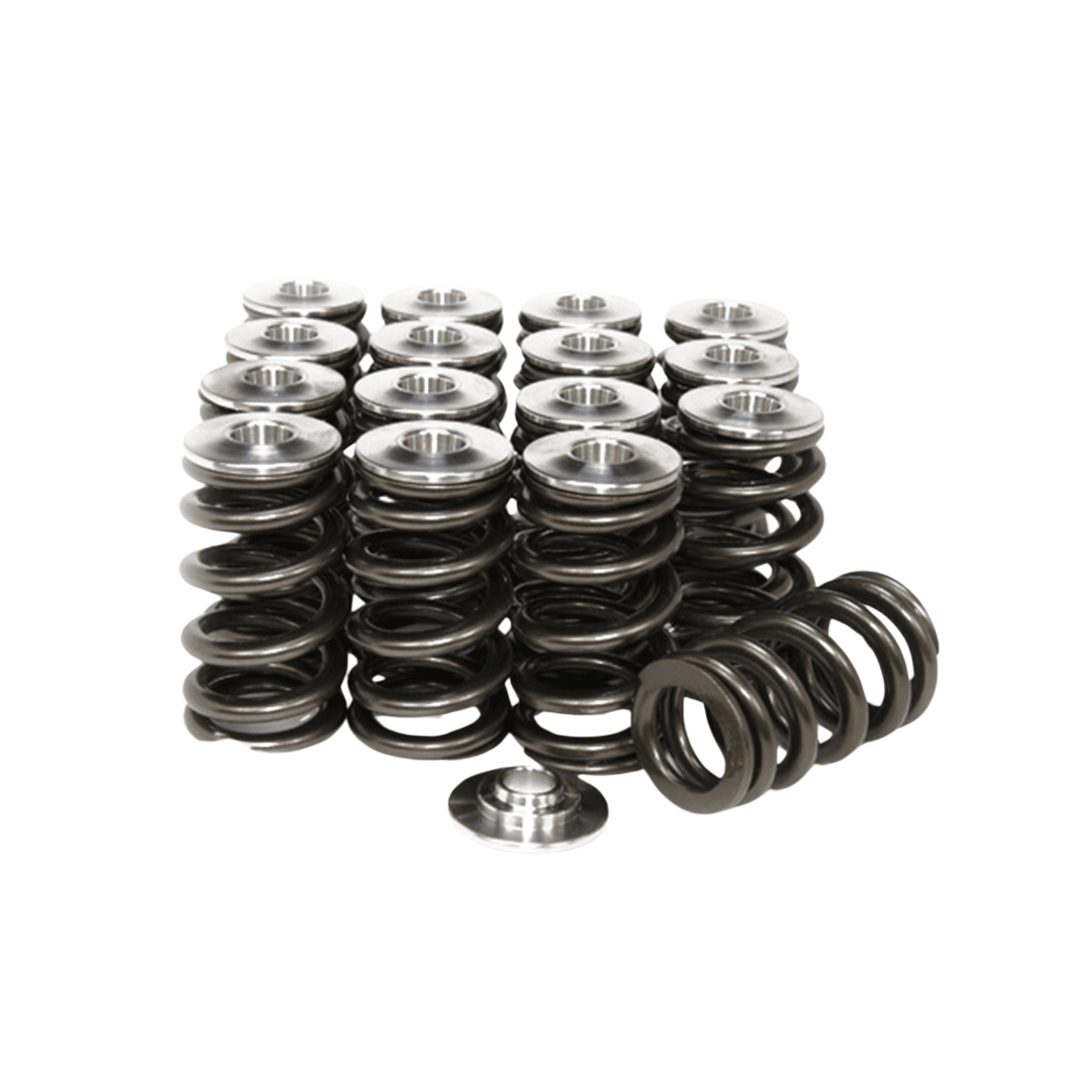

GSC Power-Division Beehive Spring Kit with Titanium Retainers for K20/K24 VTEC includes 16 titanium retainers and 16 beehive valve springs. Our beehive spring is made with an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control. This is a must have for anyone pushing the limits.
| GSC5047 Beehive Valve Spring Kit with Ti Retainer for K20/K24 VTEC | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 13.0mm Lift | Maximum Valve Lift (in) |
| Beehive | 0.920 | 1.533 | 101 | 267lbs @ 1.021" | 0.553 |
- Max RPM: 9,000 RPM
- Max boost: 50 psi
