GSC Power-Division Beehive Valve Spring Kit for FA20 WRX/BRZ/GT86.

GSC Power-Division Beehive Spring set with Titanium Retainer for the 4B11T

GSC5042

£413.25 £392.59 Save £20.66
/
Shipping calculated at checkout.
Only 3 items in stock!

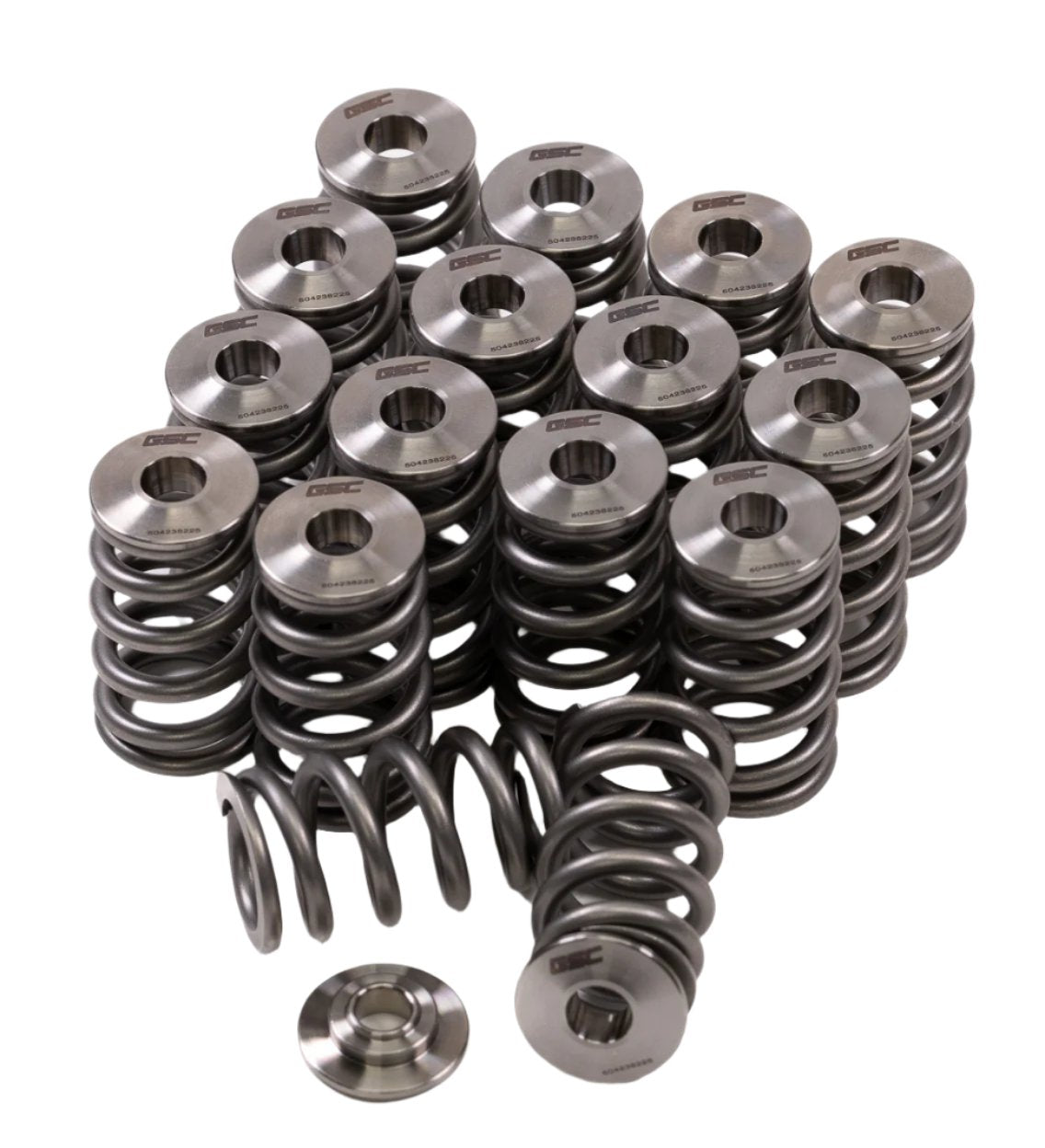

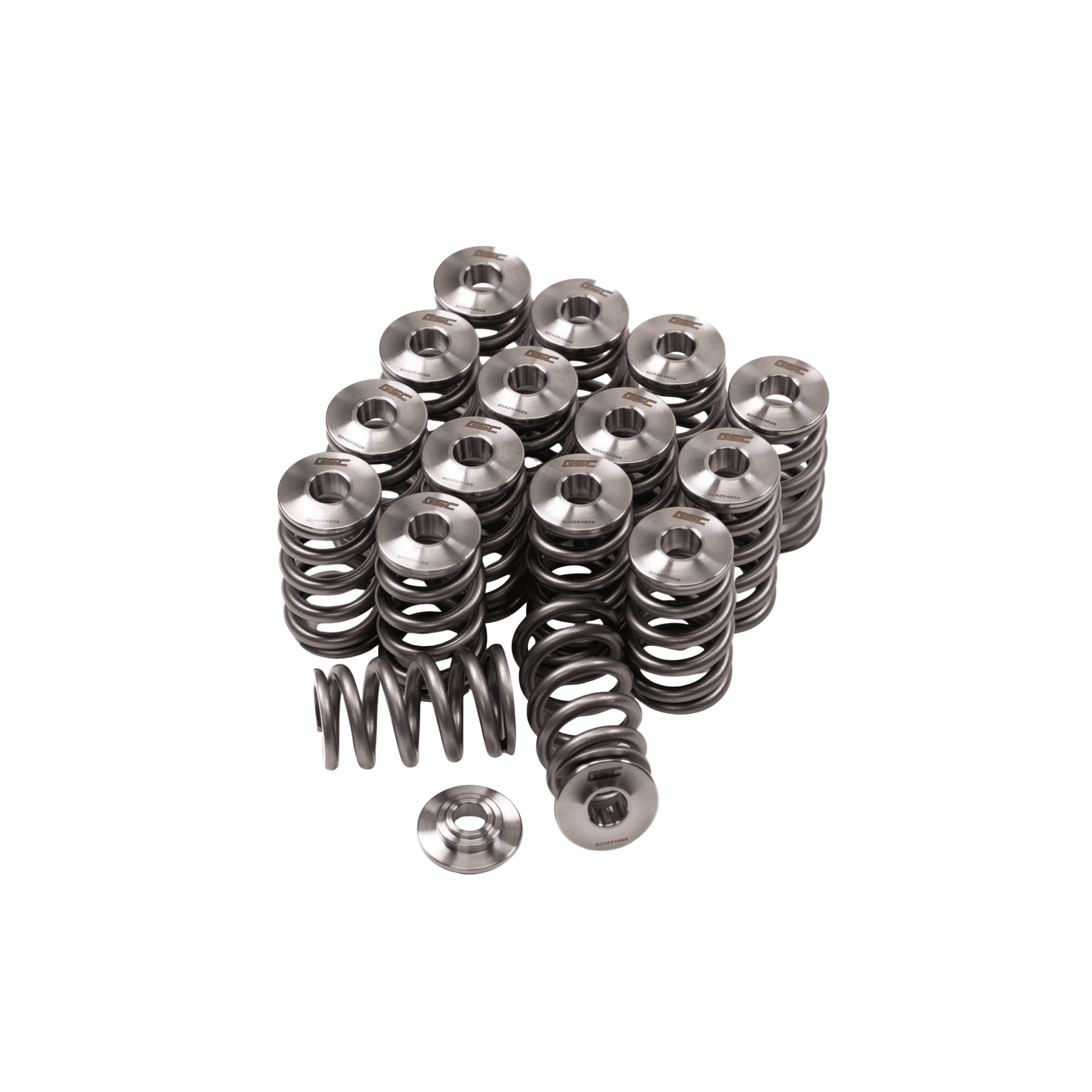

GSC Power-Division Beehive Spring Kit with Titanium Retainers for the Mitsubishi 4B11T includes 16 titanium retainers and 16 beehive valve springs. Our beehive spring utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.

GSC5042 Beehive Valve Spring Kit with Ti Retainer for 4B11T
Setup Coil Bind (in) Install Height (in) Seat Pressure (lbs) Open Pressure, 11.0mm Lift Maximum Valve Lift (in)
Beehive 0.800 1.350 / 1.361 75 / 72 217lbs @ 0.917"
214lbs @ 0.928"		 0.480
  • Max RPM: 9,500
  • Max boost: 40 psi
  • Up to 12.2mm lift cams
