GSC Conical High Valve Spring kit for Toyota 2JZ & 1JZ.

GSC Conical High Valve Spring kit for Toyota 2JZ & 1JZ


Regular price £816.05 Sale price £766.52 Save £49.53
Shipping calculated at checkout.

Only 5 items in stock!

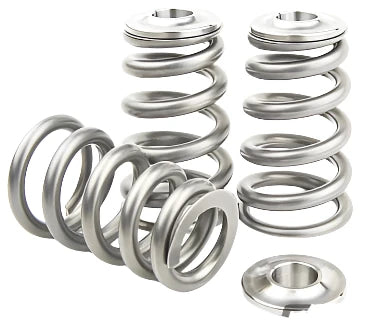

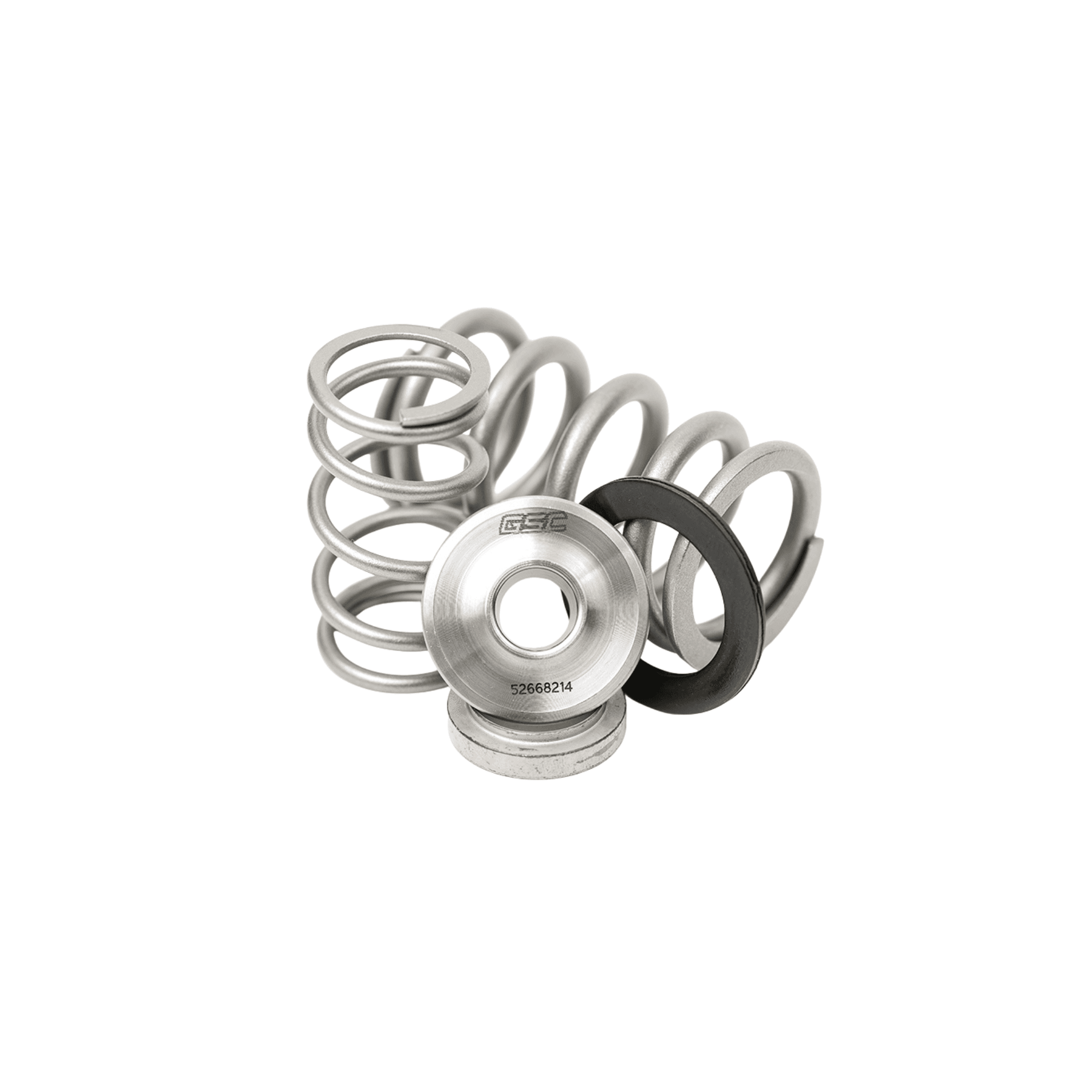

GSC Power Division High Pressure Conical Valve Spring Kit with Ti Retainer for the Toyota 2JZ & 1JZ includes 24 titanium retainers and 24 conical valve springs. True conical valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of conical springs vs. traditional cylindrical or beehive springs is the damping and removal of valvetrain harmonics. Of the three designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and a longer life of the included components. This level of protection is needed in today’s engines being pushed to their physical and mechanical limits by aftermarket modifications. Every GSC conical spring offers a super finished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures.

GSC5066 High Pressure Conical Valve Spring Kit with Ti Retainers for the Toyota 2JZ & 1JZ


Coil Bind (in)

Install Height (in)

Seat Pressure (lbs)

Open Pressure, 11.35mm lift

Maximum Valve Lift (in)

HP Conical


2JZ: 1.316
1JZ: 1.278

2JZ: 105
1JZ: 117

2JZ: 253lbs @ 0.869"
1JZ: 250 @ 0.873"

2JZ: 0.447
1JZ: 0.405

  • Max RPM: 10,000 RPM
  • Max boost: 60 psi
