GSC Power-Division High Pressure High Lift CONICAL Valve Spring with Ti Retainer for TB48 (W/SEATS)
GSC5082 High pressure High Lift CONICAL Valve Spring with Ti Retainer forTB48 (W/SEATS)
|
| Setup |
Coil Bind (in) |
Install Height (in) |
Seat Pressure (lbs) |
Open Pressure, 13.46mm lift |
Maximum Valve Lift (in) |
| Conical |
0.793" |
1.383 |
115 |
290lbs @ 0.853" |
0.530 |

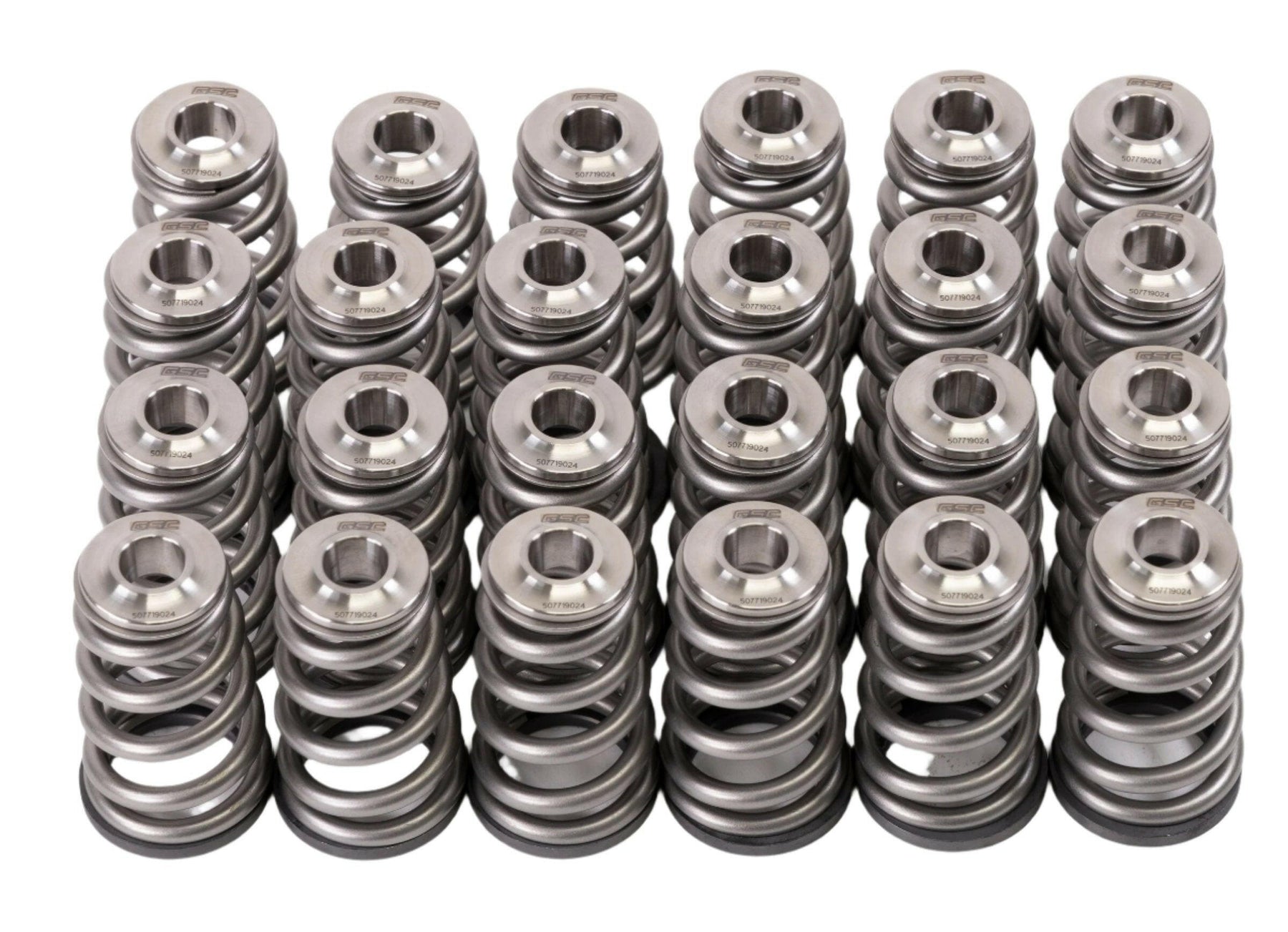

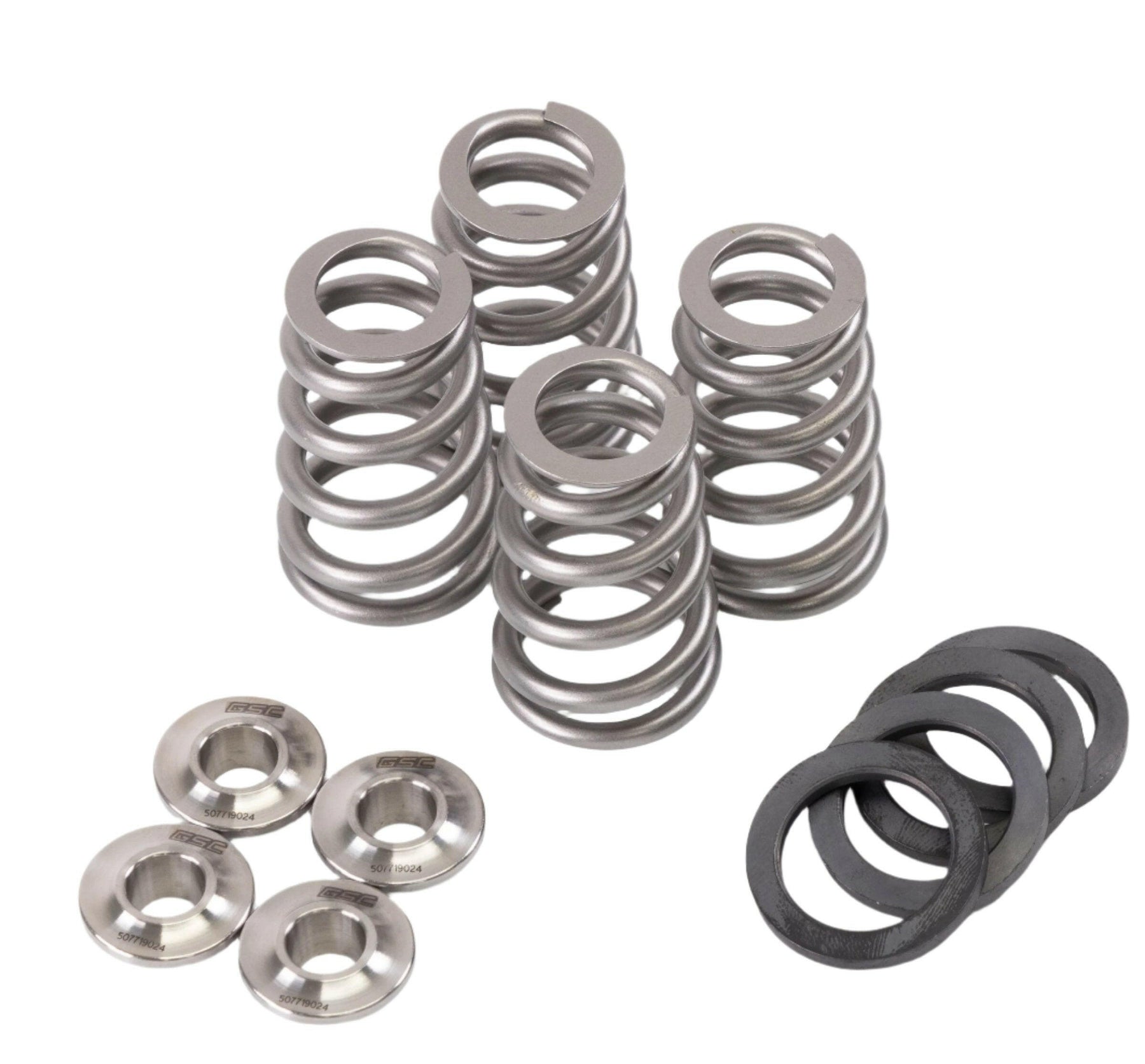

Kit includes 24 Ti retainers, 24 conical valve springs, and 24 chromoly spring seats.
