GSC Power-Division billet 7009R1R is designed to rev between 3000-7500 RPMs for use with a 34-36mm Restrictor. The peak lift and aggressive profile design will require upgraded valve springs.
**If using aftermarket cam gears (especially AEM) check the bolt length. Some cam gears are too thick for the OEM bolt on the billet cams, a 40mm underhead length bolt may be necessary in this case**

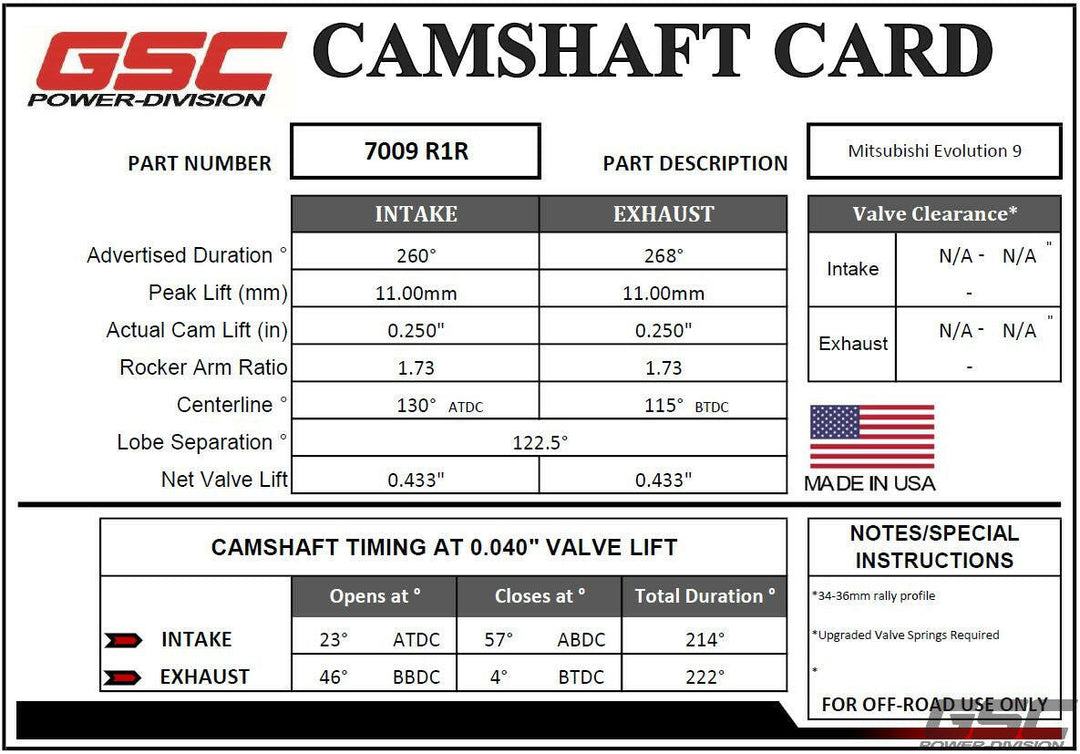

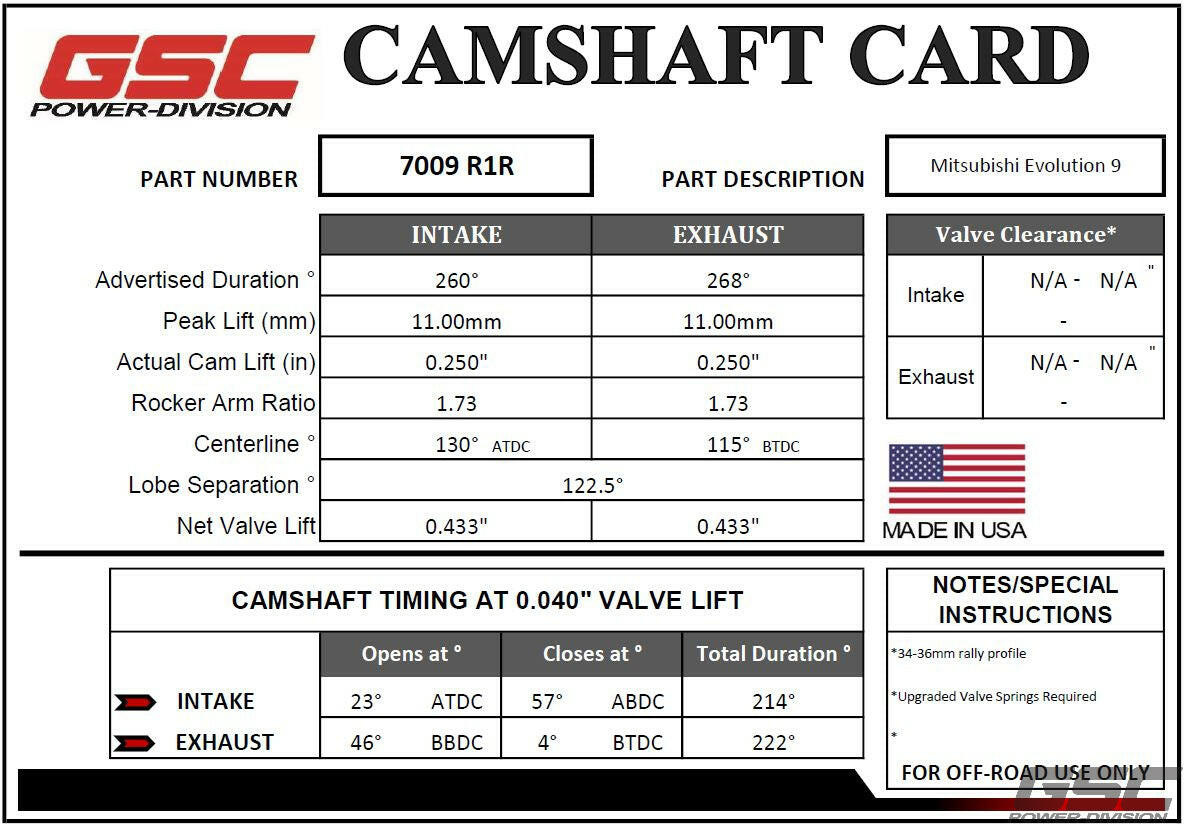

| 7009R1R |
ADV Duration |
Duration @ 0.040" |
Peak Lift |
Center Line |
| Intake |
260° |
214° |
11.00mm |
130° |
| Exhaust |
268° |
222° |
11.00mm |
115° |
